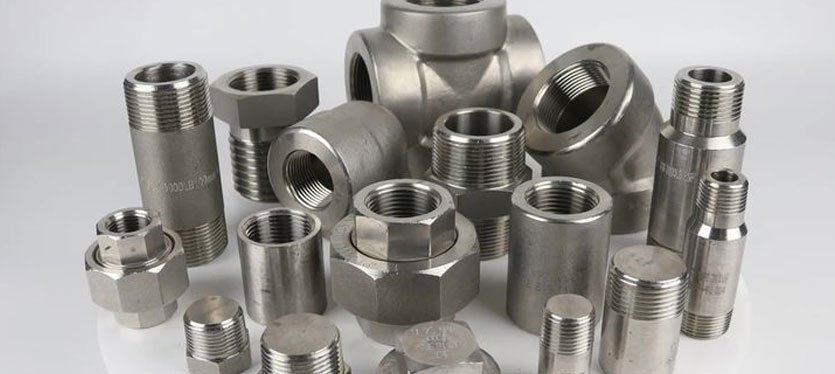

Forged Fittings
We are manufacturers and stockists of Carbon Steel, Alloy Steel, Stainless Steel Forged Fittings All the necessary tests are done from pre production to post production Material Test Certificates are provided upon demand. Designed with precision, these ss forged fittings are highly demanded by our clients due to their high quality material, precise dimensions and long working life.
Further, these fittings are also custom designed as per specific requirements of the clients. Alloy Steel, Carbon Steel Forged fittings are used for connecting pipes and controlling the volume, direction, and pressure of the flow of gases, liquids, and fluids. There are several kinds of stainless steel threaded fittings and socket weld fittings for piping systems, plumbing systems, and pressure applications.
Forged Fittings Specification :
| Dimensions | : | ASME 16.11, MSS SP-79, BS 3799, 83, 95, 97 |
| Size | : | 1/8” NB to 4” NB |
| Type | : | Threaded & Socket weld |
| Form | : | Elbow, Nipple Fittings, End Cap, 90° Elbow, Coupling, Hex Plus, Bushing, 45° Elbow, Full Coupling, Bend, Union, Lateral Tee, BSP Fittings, Half Coupling, Cross, Hex Head Plug, Round Head Plug, Hex Head Bushing, Square Head Plug, Tee, Plug, Hexagonal Plus, etc. |
| Class | : | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
Forged Fittings Specification :
| Stainless Steel Forged Fittings |
| ASTM A182, ASME SA182 304, 304L, 310, 316, 316L, 316Ti, 317, 317L, 321, 321H, 347, 347H, 410, 416, 420, 430, 431, 904L |
| Duplex & Super Duplex Steel Forged Fittings |
| ASTM A815, ASME SA815 NO S31803, S32205. UNS S32750, S32950 |
| Carbon Steel Forged Fittings |
| A105, A105N, A182 |
| Alloy Steel Forged Fittings |
| ASTM A234, ASME SA234 P11, P22, P91, GR.P6, GR.P5, A182, A335 |
| Nickel Alloy Forged Fittings |
| ASTM B336, ASME SB336, Nickel 200, Nickel 201, Monel 400, Monel K500, Hastelloy C22, Hastelloy C276, Hastelloy C2000, Hastelloy B, Inconel 600, inconel 601, Inconel 617, Inconel 625, Inconel 718, Inconel 725, Inconel X-750, Incoloy 800, Incoloy 800H, Incoloy 800HT, Incoloy 825, Incoloy 926, Incoloy 890, Incoloy 925, Incoloy A286 |
| Titanium Forged Fittings |
| ASTM B366, ASME SB366 - Grade 2, Grade 5, Grade 7 |
